TDSMAN operates on the .NET framework of Microsoft. If the system already has the .NET framework in place, TDSMAN gets installed directly, otherwise, the .NET framework and its components are installed followed
by TDSMAN.

TDSMAN Installation Process

To install the software insert the TDSMAN CD in your PC. Right click on the setup file and click on ‘Run
as Administrator’ to start the setup file. After Administrator confirmation of the windows you will get
the following screen:-

Figure 2-1 Software Installation-Step 1

Click ‘Next’ button to get the following interface where you can view the EULA (End User License
Agreement).

Figure 2-2 Software Installation-Step 2

Click ‘Next’ button to get the following interface where you can view the default folder in which
TDSMAN software is to be installed or you select a different destination folder where you want to
install the software

Figure 2-3 Software Installation-Step 3

Use the ‘Browse’ button in case you desire to change the installation folder. Before installing, if so
desired, click on ‘Disk Cost …’ button to get information of the availability of the disk space on your
system.
After you have selected the destination folder click on the next button to get the following interface:

Figure 2-4 Software Installation-Step 4

Click on the ‘Next’ button to confirm and start the installation procedure. On completion of this you
will get the following interface: -

Figure 2-5 Software Installation-Step 5

Click on ‘Close’ button to exit the installation.

TDSMAN Registration Process

Click on the software icon created on the Desktop to launch the software. The software needs to be
registered with PDS Infotech (P) Ltd. before one can start using the same.

Registration of the software can be done on the following ways:

  • Online (internet connection required)
  • Offline
    The procedure of each is explained below:

ONLINE REGISTRATION

Select ‘Online’ on the above interface and click on ‘Next’ button. The following interface is displayed:

Figure 2-6 Registration Process

Enter the Serial Number provided to you along with the software package and then click ‘Next’ to
proceed.

Figure 2-7 Online Registration Process – Step 1

On entering the valid serial number, you get the following interface:

Figure 2-8 Online Registration Process – Step 2

Provide your details and click ‘Next’ to proceed and complete the registration process. You will get the
following confirmation screen where you have to select ‘Finish’ button to exit the registration process:

Figure 2-9 Online Registration Process – Step 3

OFFLINE REGISTRATION

Select ‘Offline’ on the first screen of the registration process if you don’t have an internet connection and click on ‘Next’ button. The following interface is displayed:

Figure 2-10 Offline Registration Process – Step 1

The identification of your computer system is displayed in the System Id field. You will need to get the Activation Code either through our website (as per the web address mentioned on the interface) by filling up a web form with the requisite details or by calling over our Helpdesk. While entering the web form, for offline registration, you will need the Serial No., provided along with the software package, and the ‘System ID’, displayed in the above screen, while filling the web form. After successful verification the Activation Code will be made available which needs to be entered in the form above.
Click on ‘Next’ button to proceed.
If the Activation Code is correctly keyed in, following interface will be displayed:

Figure 2-11 Offline Registration Process – Step 2

In the above interface, you will need to enter the Serial No. (as provided along with the software package), Name of the person using the software and Email. Click on ‘Next’ button to complete the offline installation process.

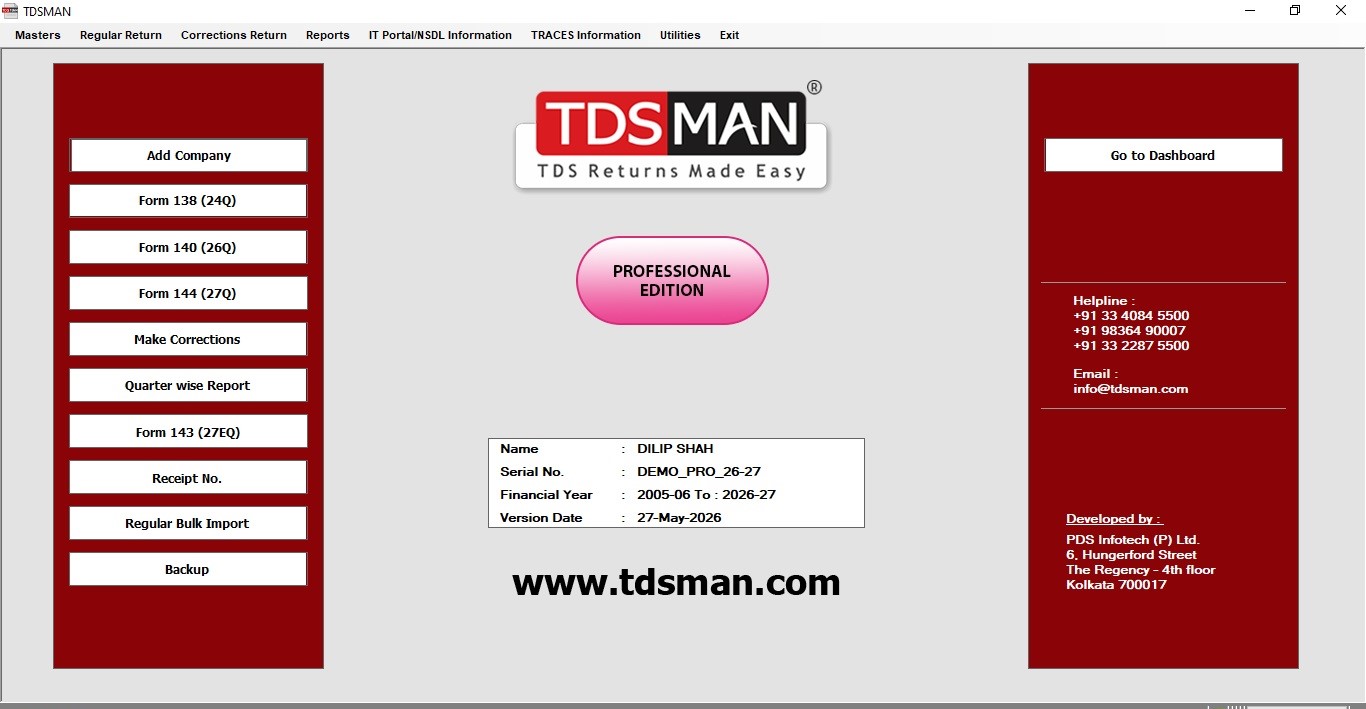

After successful installation and registration, the following start up screen will be displayed.

Figure 2-12 Successfully Registered
